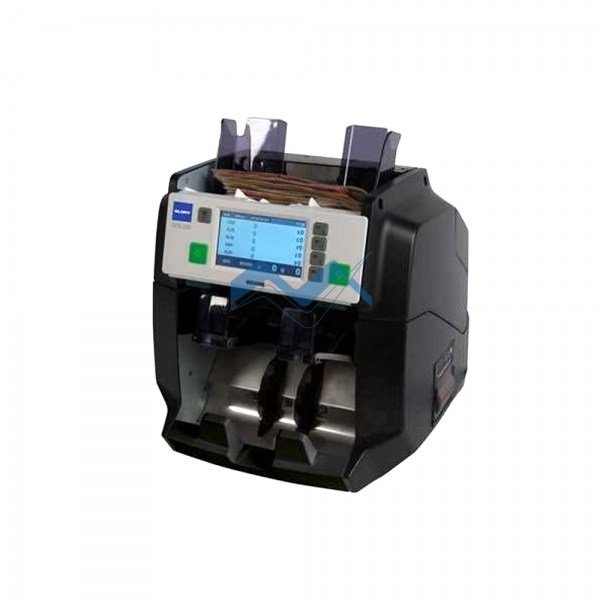

USF-200 Banknote sorter

The USF-200 is an ideal solution to provide 2-way fitness sorting with unprecedented usability and remarkable processing speeds.

Compact footprint

Compared to its predecessors, the USF-200 is 35% smaller in terms of overall footprint. This downsized device can easily fit into a teller’s workspace, ensuring they can still perform the banknote sorting operations required, but can keep the space dedicated to machines and equipment to a minimum. In addition, the USF-200’s innovative design means that no additional workspace is taken up for maintenance access – the device can be placed against a wall, leaving sufficient space in front of the machine; all user maintenance is performed by lifting the upper section.

Easy user maintenance

The USF-200 features a fully opening upper section that allows simple routine maintenance to be performed by the operator. In the event of a banknote or foreign object jam in the counting or transport section, the wide-opening upper section makes it easy to find and remove the jammed object. In addition, this innovative design ensures no additional workspace is utilised, other than the footprint of the device, for service maintenance. A dust tray is also provided for easy removal of accumulated dust.

Low noise emissions

The USF-200's operating noise is significantly reduced when compared to its predecessors. Perceived noise emissions are 50% lower due to a change in frequency range and through advance mechanical design. Its low noise emissions make it ideally suited to the branch environment.

Banknote processing speed (notes per minute)	Count mode: 1,000 / Sort mode: 1,000 / Fit/unfit mode: 1,000 / Serial number recognition*: 1,000 / *Depending on currency
Hopper capacity	500 notes
Stacker capacity	200 notes × 2
Reject stacker capacity	200 notes × 2
Power supply	100 – 240V ±10%, 1.5 – 0.8 A, 50/60 Hz
Dimensions (W × D × H)	400 mm × 360 mm × 360 mm
Weight	27 kg
External connection (option)	LAN, USB, SD card, RS-232C

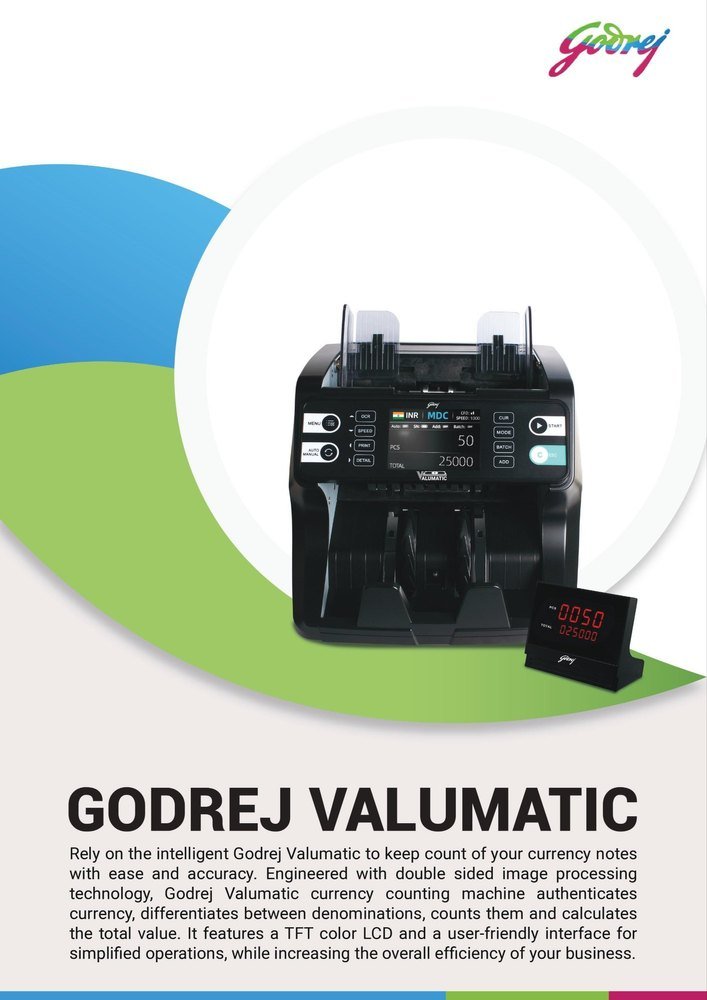

GODREJ VALUMATIC CASH COUNTING MACHINE

Description: Rely on the intelligent Godrej Valumatic to keep count of your currency notes with ease and accuracy. Engineered with double sided image processing technology, Godrej Valumatic currency counting machine authenticates currency, differentiates between denominations, counts them and calculates the total value. It features a TFT color LCD and a user-friendly interface for simplified operations, while increasing the overall efficiency of your business.

FEATURES

Full width Dual CIS (Contact Image Sensor) for 100% accuracy

Enhanced counterfeit detection through, UV, MG and IR sensors

Half note, Double note & Chain note detection

4 modes of operations: MDC (Mix Denomination Counting), SDC (Single Denomination Counting), CNT (Counting only, no detection) and MULT (Multiple currency counting)

Batch and Add functions available

The machine performs Self-Diagnostics every time the machine is switched on

Easy upgrade via USB memory

Printer compatibility for report generation

Note Sr No and image capturing

Machine can be used for 10 different currencies of the world, INR, USD, EURO, GBP, AED, OMR, KWD, NPR, TZS, QAR

Specification

Dimensions	27 cm(W) x 24.5 cm(D) x 28.8 cm(H)
Weight	6.5 kg
No of Pockets	1 pocket
Hopper Capacity	300 notes
Stacker Capacity	200 notes
Pre-set Batch Number	1-200
Display Type	TFT colour LCD display 320 x 480 pixels
Detection Sensors	Dual CIS, MG, UV, IR
Modes of Operation	CNT (Piece Count), SDC (Single Denomination Count), MDC (Mixed Denomination Count), MULT (Mixed Currencies)
Interface	RS232C port (Printer). RJ11 port (External Display), USB port
Counting Speed	800/1000/1200 notes/min
Banknote Size Range	W: 11 ~ 19 cm, H: 5~ 9 cm
Banknote Thickness Range	0.075 ~ 0.15 mm
Multiple Currencies Support	10 currencies
Power Requirements	100~240 VAC, 50-60 Hz
Power Consumption	<80W
Operational Requirements	10–40°C / 0–85 RH

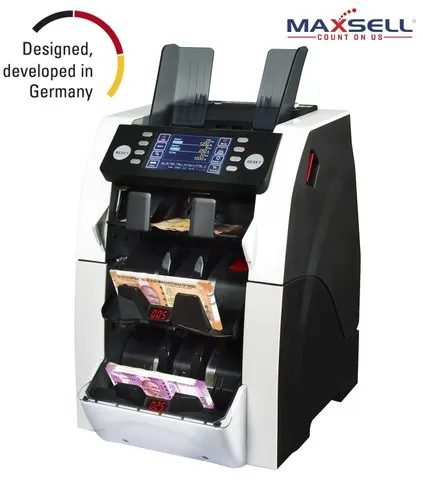

Maxsell 2 1 Pocket Fitness Sorting Machine, Model: Matrix 8300
Sorter & CIS Machine

Description: Matrix 8300 Series defines a new dawn in 3 - Pocket currency sorter. With its unparalleled bank note recognition, advanced counterfeit detection capabilities, and detailed count reporting functions, Matrix 8300 packs amazingly strong features into a compact body.

Features

Detects Multiation, De-inked, Folded corners, Holes, Soil, Stains, Tapes, Tears, Washed, Repairs, Banknotes.

Supports fitness sorting, denomination sorting, face/orientation sorting, version sorting, etc.,

Humanized intelligent design with dual operator user interface.

S. erial number and counting results can be printed instantly on external thermal printer (optional)

The report function for detailed counting results

Simple & intuitive large 5.0'' TFT color touch display, which gives you the perfect status overview.

Built-in dust collection design with fully automatic banknote dust proof door to eliminate dust & noise.

Advanced self-check system with a picture-based error message.

Software can be updated via SD card or via USB connection or via LAN

Requires minimal maintenance to keep high performance for a long period of time

Specification

Counting speed	800~1200 notes Per minutes
Hopper capacity	1000 notes (Continuous feeding)
Stacker capacity	200 notes (200*2)
Reject capacity	100 notes
Display Interface	5" Full TFT with Touch Screen
Detection	IR, MG, MT, UV, Thickness, Image
Connectivity	RS232, RJ45, USB, SD card, LAN
Power consumption	90W ≤
Dimension in mm	390 (L) x 310 (W) x 452 (H)
Weight	24.6 Kgs

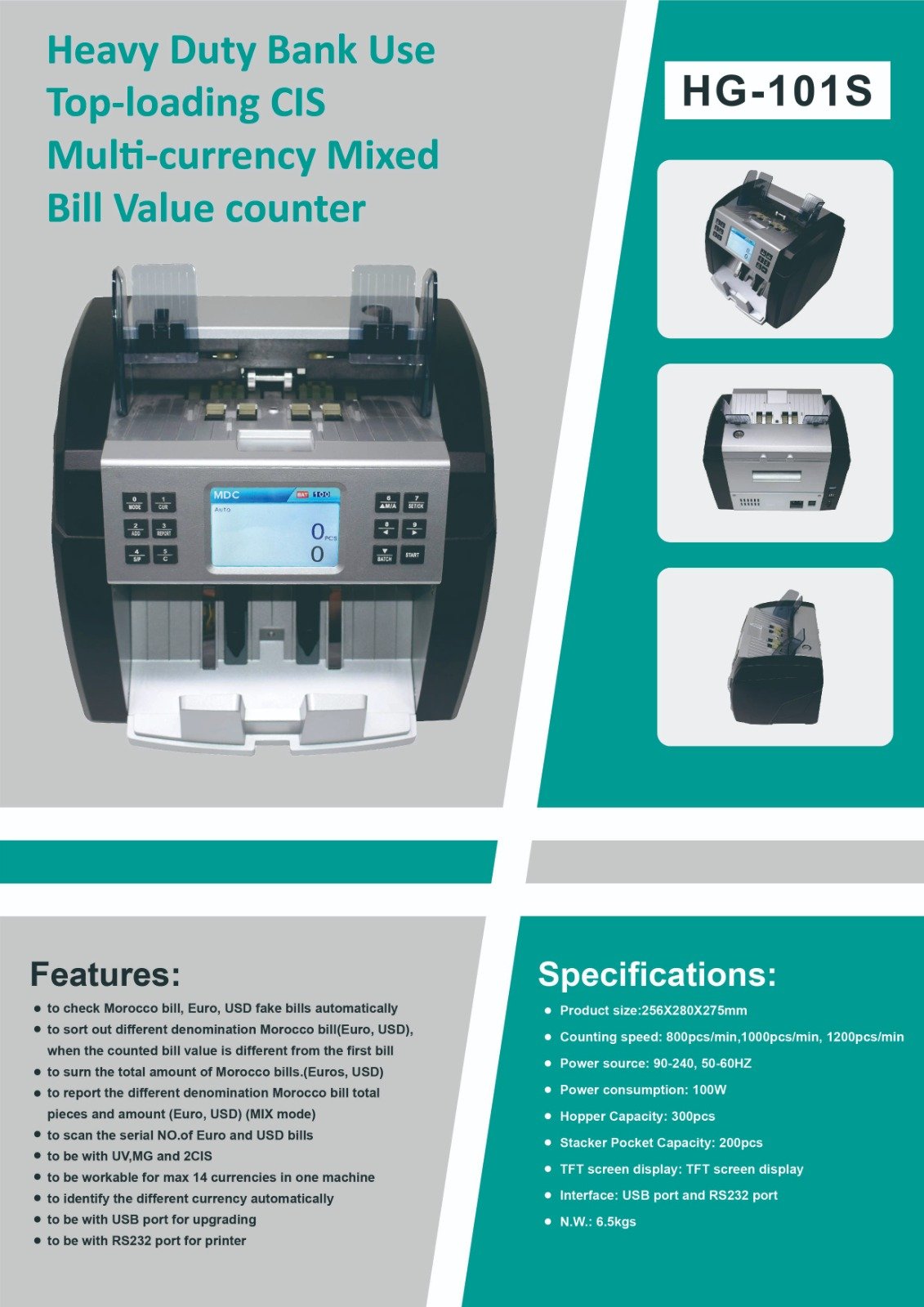

Fully Automatic Dual CIS Currency Value Counting Machine

Description: Fully Automatic Dual CIS Currency Value Counting Machine,

Features

To check Morocco bill, Euro, USD fake bills automatically

To sort out different denomination Morocco bill(Euro, USD), when the counted bill value is different from the first bill

To surn the total amount of Morocco bills. (Euro, USD)

To report the different denomination Morocco bill total pieces and amount (Eruo, USD) (MIX mode)

To scan the serial No. of Euro and USD bills

To be with UV, MG and 2CIS

To be workable for max 14 currencies in one machine

To identify the different currency automatically

To be with USB port for upgrading

To be with RS232 port for printer

Specifications

Product Size	256X280X275mm
Counting Speed	800pcs/min, 1000pcs/min, 1200pcs/min
Power Source	90-240, 50-60Hz
Power Consumption	100W
Hopper Capacity	300pcs
Stacker Pocket Capacity	200pcs
TFT screen display	TFT screen display
Interface	USB port and RS232 port
N.W	6.5kgs
